Test Systems

Wireless, Cellular and WIoT MIMO OTA Test Systems















EMITE leads wireless and cellular MIMO Test Systems OTA industry

Thanks to years of investment, patenting and investigation, EMITE has found the perfect modular and upgradable Reverberation Chamber (RC) and hybrid Reverberation/Anechoic chamber design for testing wireless and cellular devices Over-The-Air, from 2G SISO to 5G MIMO, always thinking about providing the best value-for-money for our clients.

E-Series - Medium-size Reverberation Chamber
Passive, Active and Time-Domain MIMO OTA Testing
400 MHz to 6/40/52.6 GHz

E-Series

F-Series - Large-size Hybrid Reverberation / Anechoic Chamber
Cellular MIMO OTA, W-IoT, SR, MTC, WLAN, VDT-OTA, 5G OTA (DFF, IFF-CATR, NFTF-SNF), EMC, wearables
200 MHz to 6/40/67/110 GHz

F-Series RC/AC

H-Series - Medium-size Anechoic Chamber
Sub-6GHz and mm-Wave 5G OTA testing
0.6/3 to 40/67/110 GHz

H-Series AC   NEW RELEASE!

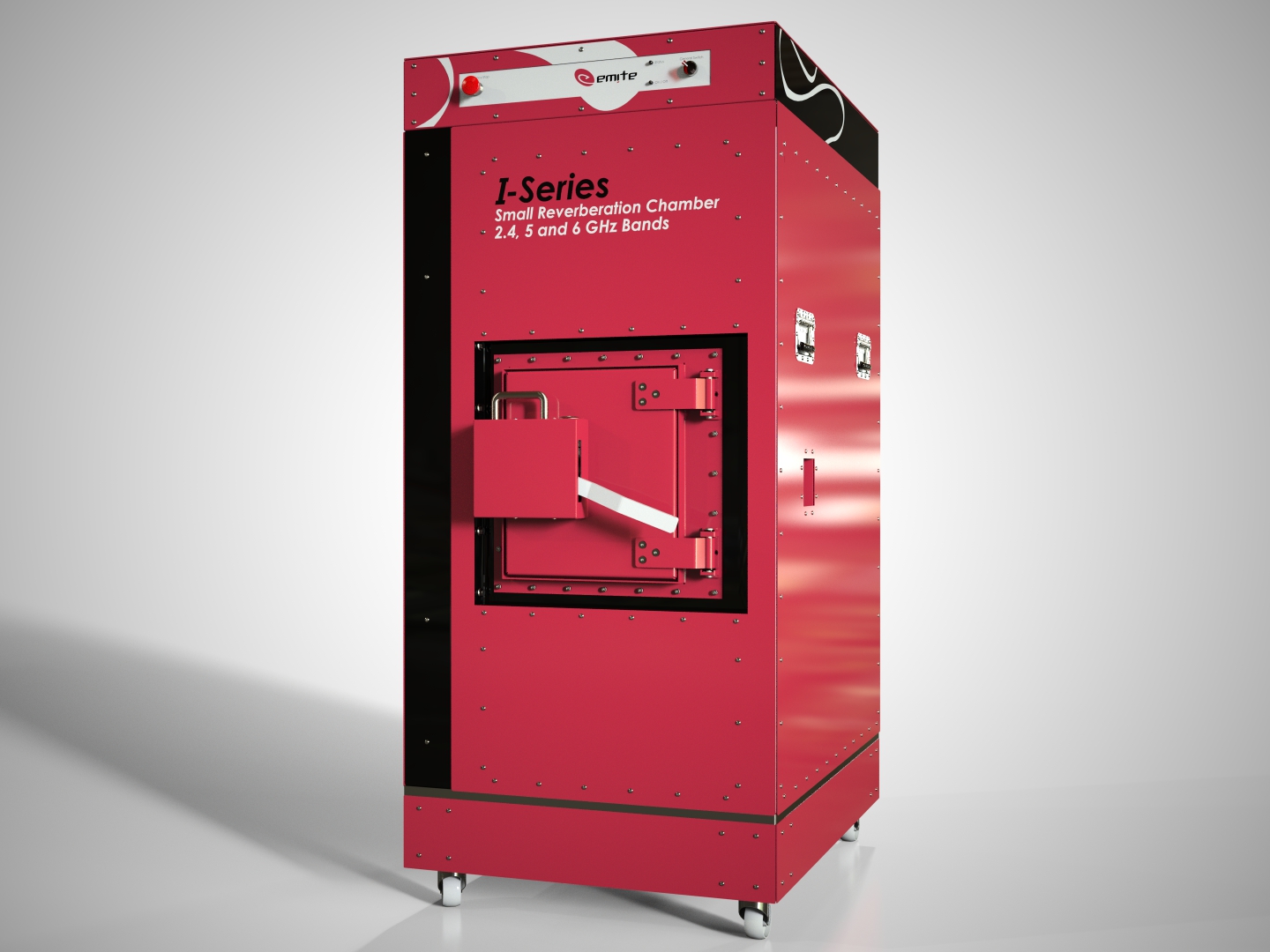

I-Series - Small-size Reverberation Chamber
Bluetooth and WLAN testing
2.4 and 5 GHz frequency bands

I-Series RC

PT-Series - Small-size Reverberation Chamber
Production OTA Testing of cellular and wireless technologies
690 MHz to 6 GHz

PT-Series RC





EMITE Reverberation Chamber Test Systems Main Features



  • Global Partners Test System Integrated Solutions
  • All wireless and cellular technologies to date
  • Overnight testing without human supervision
  • Extremely user-friendly solo Graphic User Interface
  • Passive MIMO, Active MIMO OTA and Time-domain measurements
  • Upgradable and completely modular
  • Portable and re-assembable on-site
  • Full Automation of all integrated test instruments
  • Best accuracy and repeatability
  • Selected by CTIA and several carrier Test Plans in the USA, Asia and Oceania
  • 24/7 Follow-the-Sun Support & Maintenance Model
  • Customizable Solutions
  • Testing Consultancy Services






EMITE Hybrid Reverberation/Anechoic Chamber OTA Test Systems Main Features



  • All the advantages of their RC counterparts
  • Far Field and Spherical Near Field antenna/device testing
  • Efficency, Gain, XPR, AR, radiation patterns measurements
  • AC Frequencies up to 40GHz
  • AC AuTs/DuTs up to 1m
  • Controllable from inside chamber using Tablet PC
  • Convertible from RC to AC and vice-versa within half a day
  • Selected by CTIA for Large Form-Factor devices W-IoT OTA Testing
  • 5G Testing



EMITE, your MIMO wishes come true
